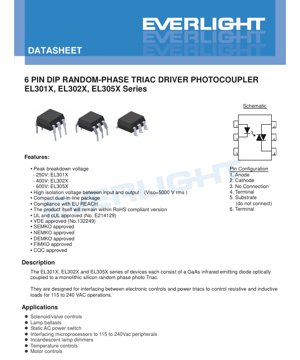

6-Pin DIP Random-Phase Triac Driver Photocoupler EL301X/302X/305X Series Datasheet - Package DIP-6 - Voltage 250V/400V/600V - English Technical Document

1. Product Overview

The EL301X, EL302X, and EL305X series are families of 6-pin Dual In-line Package (DIP) random-phase triac driver photocouplers. These devices are designed to provide a reliable and compact interface between low-voltage electronic control circuits (such as microcontrollers or logic circuits) and high-voltage AC power triacs. The core function is electrical isolation, protecting sensitive control electronics from the high-voltage AC mains side.

Each device consists of a Gallium Arsenide (GaAs) infrared light-emitting diode (LED) optically coupled to a monolithic silicon random-phase photo-triac. When current flows through the input LED, it emits infrared light, which triggers the output photo-triac into conduction, allowing it to switch AC loads. The "random-phase" capability means the output triac can be triggered at any point in the AC voltage cycle, making it suitable for simple on/off switching applications.

The primary differentiator within the series is the peak blocking voltage capability: the EL301X series is rated for 250V, the EL302X for 400V, and the EL305X for 600V. This allows designers to select the appropriate device based on their regional mains voltage (e.g., 115VAC or 230VAC) with sufficient safety margin.

2. In-Depth Technical Parameter Analysis

2.1 Absolute Maximum Ratings

These ratings define the limits beyond which permanent damage to the device may occur. Operation under these conditions is not guaranteed.

• Input (LED Side): The maximum continuous forward current (I_F) is 60 mA. The maximum reverse voltage (V_R) is 6V. The maximum power dissipation (P_D) is 100 mW at 25°C, derating by 3.8 mW/°C above 85°C ambient temperature.
• Output (Triac Side): The off-state terminal voltage (V_DRM) defines the series: 250V for EL301X, 400V for EL302X, and 600V for EL305X. The peak repetitive surge current (I_TSM) is 1A for a 100μs pulse. The on-state RMS current (I_T(RMS)) is 100 mA. The output power dissipation (P_C) is 300 mW at 25°C, derating by 7.4 mW/°C above 85°C.
• Isolation & Thermal: The isolation voltage (V_ISO) between input and output is 5000 V_rms for 1 minute. The operating temperature range is -55°C to +100°C.

2.2 Electro-Optical Characteristics

These parameters define the performance under typical operating conditions at 25°C.

• Input LED: The typical forward voltage (V_F) is 1.18V at a forward current (I_F) of 10 mA, with a maximum of 1.5V. Reverse leakage current (I_R) is a maximum of 10 μA at 6V.
• Output Triac: The peak blocking current (I_DRM) is a maximum of 100 nA when the rated V_DRM is applied and the LED is off. The peak on-state voltage (V_TM) is a maximum of 2.5V when conducting a 100 mA peak current. A critical parameter is the static dv/dt rating, which is 100 V/μs for the EL301X/302X series (at rated V_DRM) and 1000 V/μs for the EL305X series (at 400V). This rating indicates the maximum rate of voltage rise the output can withstand without false triggering.

3. Transfer Characteristics & Grading System

The series uses a grading system based on the LED Trigger Current (I_FT), which is the maximum current required to reliably turn on the output triac with a 3V bias across its main terminals. Lower I_FT devices are more sensitive.

• EL3020: Max I_FT = 30 mA
• EL3010, EL3021, EL3051: Max I_FT = 15 mA
• EL3011, EL3022, EL3052: Max I_FT = 10 mA
• EL3012, EL3023, EL3053: Max I_FT = 5 mA

The recommended operating I_F lies between the max I_FT for the specific part and the absolute maximum I_F of 60 mA. The holding current (I_H) for the output triac is typically 250 μA; once triggered, the current must stay above this level to remain conducting.

4. Performance Curve Analysis

While specific graphical curves are referenced in the datasheet (e.g., typical electro-optical characteristics curves), the provided data allows for key performance understandings. The relationship between LED forward current (I_F) and forward voltage (V_F) is approximately linear in the operating range. The output triac's on-state voltage (V_TM) shows minimal variation with current within its rated range, leading to low conduction losses. The device's triggering behavior is consistent across the operating temperature range, though the required I_FT may have a negative temperature coefficient (requiring slightly less current at higher temperatures).

5. Mechanical & Package Information

The device is housed in a standard 6-pin DIP package. Key dimensions include the standard 0.1-inch (2.54 mm) row spacing. The datasheet details two specific lead form options in addition to the standard straight leads:

• Standard DIP Type: For through-hole PCB mounting.
• Option M Type: Features a "wide lead bend" creating a 0.4-inch (10.16 mm) row spacing, likely for compatibility with specific sockets or board layouts.
• Surface mount options (S, S1) are also available, supplied in tape and reel packaging.

The pin configuration is: 1-Anode, 2-Cathode (Input LED); 3-No Connection; 4-Main Terminal 2 (T2); 5-Substrate (Do Not Connect); 6-Main Terminal 1 (T1). Clear polarity marking is standard on the package.

6. Soldering & Assembly Guidelines

The absolute maximum rating for soldering temperature is 260°C for 10 seconds. This is a typical rating for wave or reflow soldering processes. For manual soldering, a temperature-controlled iron should be used, and contact time per lead should be minimized. Standard ESD (Electrostatic Discharge) precautions should be observed during handling. Recommended storage conditions are within the specified storage temperature range of -55°C to +125°C in a low-humidity environment.

7. Packaging & Ordering Information

The part number follows the format: EL30[1/2/5]XY(Z)-V.

• The first digit after '30' indicates voltage rating (1=250V, 2=400V, 5=600V).
• The next character (X) indicates the sensitivity grade (0,1,2,3 as per I_FT table).
• The following character (Y) indicates lead form: None (standard DIP), M (wide bend), S (surface mount), S1 (low-profile surface mount).
• The optional (Z) indicates tape & reel: TA or TB.
• The optional '-V' suffix indicates VDE safety approval.

Packing quantities: 65 units per tube for through-hole versions. 1000 units per reel for tape and reel surface mount versions.

8. Application Suggestions

8.1 Typical Application Scenarios

These photocouplers are ideal for interfacing low-voltage DC control circuits with AC power lines for switching resistive and inductive loads in the 115VAC to 240VAC range. Common applications include:

• Solenoid and Valve Controls: For activating pneumatic/hydraulic valves.
• Static AC Power Switches: Creating solid-state relays for AC load switching.
• Interfacing Microprocessors: Allowing a microcontroller to safely control AC-powered peripherals like fans, pumps, or heaters.
• Incandescent Lamp Dimmers: For simple on/off control (not phase-angle dimming).
• Temperature and Motor Controls: As the isolation and triggering component in control systems.

8.2 Design Considerations

• Input Current Limiting: A series resistor must always be used with the input LED to limit current to a value between the max I_FT and 60 mA. Calculate R_limit = (V_CC - V_F) / I_F.
• Output Snubber Networks: When driving inductive loads (motors, solenoids), a snubber circuit (RC network) across the output triac or the load is often necessary to limit the rate of voltage rise (dv/dt) during commutation and prevent false triggering.
• Heat Dissipation: Ensure the total power dissipation (input + output) does not exceed the rated P_TOT of 330 mW, considering derating with temperature. The output current (100 mA RMS) is relatively low, so these are suited for driving gate circuits of larger triacs or switching small loads directly.
• Voltage Selection: Choose the voltage series (EL301X/302X/305X) with a V_DRM rating significantly higher than the peak AC mains voltage (e.g., for 230VAC, peak is ~325V, so EL302X 400V or EL305X 600V is appropriate).

9. Technical Comparison & Differentiation

Compared to zero-crossing triac driver photocouplers, the random-phase type offers the advantage of immediate triggering, which is necessary for applications requiring instant response. The trade-off is the potential for higher inrush currents when switching on at the peak of the AC voltage, especially with capacitive or cold filament loads. The primary differentiation within this series is the combination of blocking voltage and sensitivity (I_FT), allowing for precise component selection based on application voltage and available drive current.

10. Frequently Asked Questions (FAQs)

Q: Can this device directly switch a 100W incandescent lamp?
A: Possibly, but not optimally. A 100W lamp at 120VAC draws about 0.83A RMS, which exceeds the device's 100 mA RMS rating. This photocoupler is designed to drive the gate of a higher-power triac, which then switches the lamp load.

Q: What is the purpose of the "Substrate" pin (Pin 5)?
A> The datasheet explicitly states "do not connect." This pin is internally connected to the silicon substrate for manufacturing reasons and must be left electrically floating in the application.

Q: How do I test the static dv/dt rating?
A: The datasheet provides a detailed test circuit (Figure 8) and methodology. It involves applying a high-voltage pulse through an RC network to the output and increasing the RC time constant until the device stops triggering falsely, then calculating the dv/dt from the final τ value.

Q: What is the difference between the 'S' and 'S1' surface mount options?
A: Both are for surface mounting, but 'S1' is specified as a "low profile" lead form, which likely means the leads are bent to sit closer to the PCB, reducing the overall mounted height of the component.

11. Practical Design Example

Scenario: A microcontroller (3.3V GPIO) needs to control a 120VAC, 1A fan via a larger triac (e.g., a BT136).
Design Steps:
1. Photocoupler Selection: Choose EL3022-V. 400V rating provides margin for 120VAC (peak ~170V). I_FT of 10 mA is easily driven from 3.3V.
2. Input Circuit: Calculate series resistor. Assuming V_F ~1.2V and target I_F = 15 mA. R = (3.3V - 1.2V) / 0.015A = 140 Ω. Use a standard 150 Ω resistor.
3. Output Circuit: Connect the photocoupler's MT1 (Pin 6) and MT2 (Pin 4) in series with a gate resistor (e.g., 100-360 Ω) to the gate of the BT136 triac. The BT136's MT1 and MT2 switch the fan load.
4. Snubber: Add an RC snubber (e.g., 100 Ω, 0.1 μF) across the BT136's MT1 and MT2 to suppress voltage transients from the inductive fan motor.
This design provides full isolation, safe interfacing, and reliable AC load switching.

12. Operating Principle

The device operates on the principle of optical isolation. An electrical signal applied to the input side causes the GaAs LED to emit infrared light. This light crosses an isolation gap (typically through a transparent dielectric) and strikes the photosensitive silicon of the integrated random-phase triac. The light energy generates charge carriers that trigger the triac into its conducting state, effectively closing the switch on the output side. The key is that there is no electrical connection between the input and output, only a light beam, providing the high isolation voltage (5000 V_rms). The output triac, once triggered, will remain conducting as long as the current through its main terminals exceeds the holding current (I_H), and will turn off when the AC current naturally crosses zero.

13. Technology Trends

Photocouplers like the EL30xx series represent a mature and reliable technology for AC load control and isolation. Current trends in the field include the development of devices with higher switching speeds, lower trigger currents for better energy efficiency in control circuits, higher isolation voltages for industrial safety standards, and integration of more features into the package (such as built-in zero-crossing detection or over-current protection). There is also a continued push towards smaller surface-mount packages to save board space in modern electronics. The fundamental principle of optical isolation remains dominant in applications requiring high noise immunity and safety compliance.
