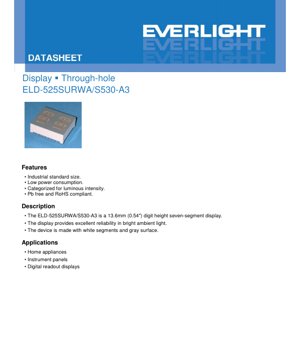

ELD-525SURWA/S530-A3 Seven Segment Display Datasheet - 13.6mm Digit Height - 2.4V Forward Voltage - Brilliant Red - English Technical Document

1. Product Overview

The ELD-525SURWA/S530-A3 is a single-digit, seven-segment alphanumeric display designed for through-hole mounting. It features a standard industrial footprint, making it compatible with a wide range of existing PCB layouts and sockets. The primary application of this component is to provide clear, reliable numerical or limited alphanumeric readouts in electronic devices.

The core value proposition of this display lies in its balance of performance and reliability. It is constructed using an AlGaInP (Aluminum Gallium Indium Phosphide) semiconductor chip, which is known for producing high-efficiency, brilliant red light. The segments are white for high contrast, set against a gray surface to further enhance readability, particularly in environments with bright ambient light. This makes it suitable for applications where the display must be easily visible under various lighting conditions.

The device is categorized for luminous intensity, meaning units are binned and sold according to specific brightness ranges, ensuring consistency in appearance when multiple displays are used in a single product. It is also compliant with RoHS (Restriction of Hazardous Substances) directives, being manufactured as lead-free (Pb-free), which is a critical requirement for modern electronic products sold in many global markets.

2. Technical Parameter Deep Dive

The performance and limits of the ELD-525SURWA/S530-A3 are defined by its absolute maximum ratings and electro-optical characteristics, which must be strictly adhered to for reliable operation.

2.1 Absolute Maximum Ratings

These ratings define the stress limits beyond which permanent damage to the device may occur. They are not conditions for normal operation.

• Reverse Voltage (V_R): 5V. Exceeding this voltage in reverse bias can cause immediate junction breakdown.
• Forward Current (I_F): 25 mA DC. This is the maximum continuous current that can be applied.
• Peak Forward Current (I_FP): 60 mA. This is allowed only under pulsed conditions (duty cycle ≤ 10%, frequency ≤ 1 kHz).
• Power Dissipation (P_d): 60 mW. This is the maximum power the device can dissipate as heat, calculated as Forward Voltage × Forward Current.
• Operating Temperature (T_opr): -40°C to +85°C. The device is guaranteed to function within this ambient temperature range.
• Storage Temperature (T_stg): -40°C to +100°C.
• Soldering Temperature (T_sol): 260°C for a duration not exceeding 5 seconds. This is critical for wave or hand soldering processes.

2.2 Electro-Optical Characteristics

These are the typical performance parameters measured at an ambient temperature (T_a) of 25°C. Designers should use the typical (Typ.) or maximum (Max.) values as appropriate for their design margins.

• Luminous Intensity (I_v): 7.8 mcd (Min.), 12.5 mcd (Typ.) per segment at I_F=10mA. The datasheet notes a tolerance of ±10% on this value. This intensity is measured for a single segment, not the entire digit.
• Peak Wavelength (λ_p): 632 nm (Typ.) at I_F=20mA. This is the wavelength at which the emitted light's spectral power distribution is maximum, characteristic of the brilliant red color from the AlGaInP chip.
• Dominant Wavelength (λ_d): 624 nm (Typ.) at I_F=20mA. This is the single wavelength perceived by the human eye to match the color of the light, which is slightly different from the peak wavelength.
• Spectral Bandwidth (Δλ): 20 nm (Typ.) at I_F=20mA. This defines the range of wavelengths emitted, centered around the peak wavelength.
• Forward Voltage (V_F): 2.0V (Typ.), 2.4V (Max.) at I_F=20mA. The tolerance is ±0.1V. This parameter is crucial for designing the current-limiting circuitry.
• Reverse Current (I_R): 100 µA (Max.) at V_R=5V. This is the small leakage current when the diode is reverse-biased.

3. Binning System Explanation

The ELD-525SURWA/S530-A3 employs a categorization or binning system primarily for Luminous Intensity. During manufacturing, slight variations occur. Units are tested and sorted into different bins based on their measured luminous output at a standard test current (10mA). This ensures that when multiple displays are used side-by-side in an instrument panel, for example, they will have a uniform brightness. The specific bin codes (e.g., CAT on the label) would be defined in separate documentation provided to high-volume customers. The dominant wavelength is fixed by the AlGaInP chip material, so color binning is not a primary factor for this monochromatic red display.

4. Performance Curve Analysis

The datasheet provides typical curves that illustrate how key parameters change under different operating conditions. These are essential for robust design.

4.1 Spectrum Distribution

The spectral distribution curve shows the relative intensity of light emitted across different wavelengths. For this device, it is a bell-shaped curve centered at approximately 632 nm (the peak wavelength) with a typical full width at half maximum (FWHM) of 20 nm. This narrow bandwidth is characteristic of direct-bandgap semiconductors like AlGaInP and results in a saturated, pure red color.

4.2 Forward Current vs. Forward Voltage (I-V Curve)

This curve depicts the non-linear relationship between the current flowing through the LED and the voltage across it. It shows the typical "knee" voltage (around 1.8-2.0V) where current begins to increase significantly. Above this knee, the curve is relatively steep, meaning small changes in voltage cause large changes in current. This is why LEDs are almost always driven with a constant current source or a voltage source with a series current-limiting resistor, not a pure constant voltage, to prevent thermal runaway.

4.3 Forward Current Derating Curve

This is one of the most critical curves for reliability. It shows how the maximum allowable continuous forward current (I_F) must be reduced as the ambient operating temperature increases. The absolute maximum rating of 25 mA is valid only up to a certain temperature (likely 25-40°C). As temperature rises towards the maximum operating limit of 85°C, the permissible current decreases linearly. This derating is necessary because the LED's internal junction temperature rises with both ambient heat and self-heating from current flow. Exceeding the maximum junction temperature degrades the device's lifespan and luminous output.

5. Mechanical and Package Information

The display is a through-hole device with a standard 13.6mm (0.54 inch) digit height. The package dimension drawing provides critical measurements for PCB layout:

• Overall Dimensions: The drawing specifies the length, width, and height of the plastic body, as well as the digit window size.
• Pin Layout and Spacing: It details the position, diameter, and spacing of the 10 pins (one for each segment, plus a common cathode or anode, depending on the internal circuit). The standard pin spacing is 2.54mm (0.1 inch).
• Polarity Identification: The drawing or internal circuit diagram indicates pin 1, which is essential for correct orientation during assembly. The internal circuit diagram shows the common connection point for all segments (common cathode configuration is typical for such displays).
• Tolerances: General dimensional tolerances are ±0.25mm unless otherwise specified on the drawing.

6. Soldering and Assembly Guidelines

Proper handling is required to ensure device integrity.

• Soldering: The device can withstand a maximum soldering temperature of 260°C for a time not exceeding 5 seconds. This is suitable for most wave soldering and hand soldering processes. Prolonged exposure to high heat can damage the internal wire bonds or the plastic package.
• Electrostatic Discharge (ESD): The LED dice are sensitive to ESD. Recommended precautions include using grounded wrist straps, ESD-safe workstations and flooring, conductive table mats, and proper grounding of all equipment. Ionizers can be used to neutralize charge on insulating materials.
• Storage: Devices should be stored in their original anti-static packaging within the specified storage temperature range (-40°C to +100°C) in a low-humidity environment to prevent oxidation of the leads.

7. Packaging and Ordering Information

The device follows a specific packaging flow to protect it during shipping and handling.

• Packaging Process: Units are first packed into tubes, typically holding 20 pieces per tube. These tubes are then placed into boxes, with 36 tubes per box. Finally, 4 boxes are packed into a master shipping carton. This totals 2,880 pieces per carton (20 x 36 x 4).
• Label Explanation: Packaging labels contain several codes:
  • P/N: The manufacturer's part number (ELD-525SURWA/S530-A3).
  • CAT: The luminous intensity rank or bin code.
  • LOT No: The manufacturing lot number for traceability.
  • QTY: The quantity of devices in that specific package.

8. Application Recommendations

8.1 Typical Application Scenarios

As listed in the datasheet, primary applications include:

• Home Appliances: Display panels for ovens, microwaves, washing machines, and air conditioners.
• Instrument Panels: Readouts for test equipment, industrial controls, automotive aftermarket gauges (where environmental specs are met).
• Digital Readout Displays: Clocks, timers, counters, and simple measurement displays.

8.2 Design Considerations

• Current Limiting: Always use a series resistor or constant current driver. Calculate the resistor value using R = (V_supply - V_F) / I_F. Use the maximum V_F from the datasheet for a conservative design to ensure current does not exceed limits.
• Multiplexing: For multi-digit displays, a multiplexing scheme is common to reduce pin count on the microcontroller. Ensure the peak current in multiplexed operation does not exceed the I_FP rating, and consider the reduced duty cycle's effect on perceived brightness.
• Viewing Angle: While not specified in detail, through-hole seven-segment displays typically have a wide viewing angle. The gray background helps maintain contrast at off-axis views.
• Thermal Management: Adhere to the current derating curve. In high ambient temperature applications, consider reducing the drive current or providing ventilation to keep the junction temperature low.
• Reverse Voltage Protection: The datasheet warns against applying continuous reverse bias, which can cause migration and failure. In circuits where reverse voltage is possible (e.g., AC-coupled or inductive loads), include a protection diode in parallel with the LED (cathode-to-cathode for common-anode displays, anode-to-anode for common-cathode).

9. Technical Comparison and Differentiation

Compared to older technologies or alternative options, the ELD-525SURWA/S530-A3 offers specific advantages:

• vs. Incandescent or VFD Displays: LEDs have significantly lower power consumption, generate less heat, are more mechanically robust (no filament), and have a much longer operational lifetime.
• vs. Other LED Colors/Technologies: The use of AlGaInP for red offers higher efficiency and better color saturation than older GaAsP (Gallium Arsenide Phosphide) red LEDs. The brilliant red is visually striking.
• vs. Surface-Mount (SMD) Displays: Through-hole displays like this one are easier to prototype with, can be more robust in high-vibration environments due to mechanical pin attachment, and are often preferred for low-volume or serviceable products. SMD versions would save PCB space.
• Key Differentiators: The industrial standard size ensures drop-in compatibility. The luminous intensity binning guarantees brightness uniformity. The RoHS compliance meets modern environmental regulations.

10. Frequently Asked Questions (Based on Technical Parameters)

10.1 Can I drive this display directly from a 5V microcontroller pin?

No, not directly. A typical microcontroller GPIO pin can source or sink 20-25mA, which matches the I_F rating. However, the forward voltage of the LED (max 2.4V) is lower than the 5V supply. Connecting it directly would attempt to pull far more than 25mA through both the LED and the microcontroller pin, likely damaging both. You must use a current-limiting resistor. For a 5V supply and a target I_F of 20mA, using the max V_F of 2.4V: R = (5V - 2.4V) / 0.02A = 130 Ohms. A 150 Ohm resistor would be a safe, standard value yielding slightly less current.

10.2 Why is the luminous intensity measured per segment and not for the whole digit?

Measuring per segment is the standard method because the total brightness of a digit depends on how many segments are lit (e.g., number "1" uses 2 segments, number "8" uses 7). Specifying intensity per segment allows designers to accurately calculate the current draw and perceived brightness for any character. The total current for a fully lit digit is approximately 7 times the single-segment current (if all segments are identical).

10.3 What is the difference between peak wavelength and dominant wavelength?

Peak Wavelength (λ_p): The physical wavelength at which the LED emits the most optical power. It's a property of the semiconductor material. Dominant Wavelength (λ_d): The single wavelength of monochromatic light that matches the perceived color of the LED's output to the human eye. Because human eye sensitivity (photopic response) varies with wavelength, these two values differ. λ_d is more relevant for color specification in displays.

10.4 How do I interpret the current derating curve?

The curve shows the maximum allowable continuous forward current at a given ambient temperature. For example, if your product operates in a 60°C environment, you must find 60°C on the x-axis, go up to the derating line, and then read the corresponding current on the y-axis. This current will be less than the 25mA absolute maximum rating. You must design your driver circuit to ensure the current never exceeds this lower, temperature-dependent value.

11. Design and Usage Case Study

Scenario: Designing a simple digital timer for a kitchen appliance.

1. Requirements: Display counts down from 99 minutes, visible under kitchen lighting. Powered by a regulated 5V supply. Microcontroller with limited I/O pins.
2. Component Selection: Two ELD-525SURWA/S530-A3 displays are chosen for their readability (white on gray), standard size, and reliability.
3. Circuit Design:
   • Drive Method: Use multiplexing to control two digits with one set of 8 segment lines (7 segments + decimal point) and 2 common cathode pins.
   • Current Limit: Place one current-limiting resistor on each of the 8 segment lines, shared by both digits. Calculate for 10mA per segment (for good brightness at lower power): R = (5V - 2.4V) / 0.01A = 260 Ohms. Use 270 Ohm standard resistors.
   • Microcontroller Interface: The 8 segment lines connect to 8 GPIO pins configured as outputs. The 2 common cathode pins connect to 2 other GPIO pins via NPN transistors (e.g., 2N3904) to sink the higher combined cathode current (up to 80mA for a fully lit digit).
   • Software: Implement a timer interrupt (e.g., 1ms). In the interrupt routine, switch off the currently active digit, update the segment pattern for the next digit, and turn on its transistor. This cycles rapidly, creating the illusion of both digits being constantly lit.
4. Thermal Check: Kitchen ambient may reach 40°C. Check derating curve: at 40°C, max I_F is still likely very close to 25mA. Our design uses only 10mA per segment, well within the safe limit.

12. Operating Principle

A Light Emitting Diode (LED) is a semiconductor p-n junction diode. When forward-biased (positive voltage applied to the p-side relative to the n-side), electrons from the n-region and holes from the p-region are injected across the junction. When these charge carriers recombine in the active region near the junction, they release energy. In an LED, this energy is released in the form of photons (light particles). The specific wavelength (color) of the emitted light is determined by the bandgap energy of the semiconductor material used. For the ELD-525SURWA/S530-A3, the AlGaInP (Aluminum Gallium Indium Phosphide) compound semiconductor has a bandgap that corresponds to red light with a peak wavelength around 632 nm. Each of the seven segments contains one or more of these LED chips connected in series/parallel to form the segment shape.

13. Technology Trends

The seven-segment LED display is a mature technology. Current trends focus on:

• Miniaturization: Moving towards smaller digit heights and surface-mount packages for denser, lighter products.
• Integration: Incorporating the display driver IC (often an I2C or SPI controlled chip) directly onto the module or even within the same package, simplifying the host microcontroller's task.
• Enhanced Features: Adding more colors (e.g., bi-color red/green), higher brightness for sunlight readability, and wider viewing angles.
• Material Advancements: Continued improvement in semiconductor materials like AlGaInP and InGaN (for blue/green/white) leads to higher luminous efficacy (more light output per watt of electrical input), improving energy efficiency.
• Market Niche: While graphical displays (LCD, OLED) dominate complex information, seven-segment LEDs remain highly relevant for applications requiring simple, low-cost, high-reliability, high-contrast numeric readouts where power consumption and long life are critical.
