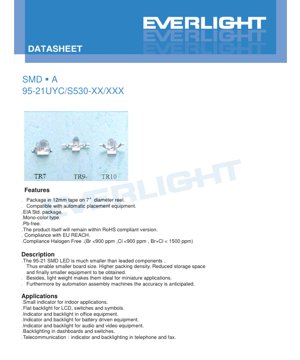

SMD LED 95-21UYC/S530-XX/XXX Datasheet - Super Yellow - 2.0x1.25x0.8mm - 2.4V - 60mW - English Technical Document

1. Product Overview

The 95-21UYC/S530-XX/XXX is a compact, surface-mount LED designed for indicator and backlighting applications. Utilizing AlGaInP chip technology, it emits a Super Yellow light with a water-clear resin encapsulation. Its primary advantages include a significantly smaller footprint compared to leaded components, enabling higher packing density on PCBs, reduced equipment size, and suitability for automated assembly processes, ensuring placement accuracy.

2. Key Features and Compliance

The device is packaged on 12mm tape wound on a 7-inch diameter reel, compatible with standard automatic placement equipment. It is a mono-color type, lead-free (Pb-free), and compliant with key environmental and safety regulations. This includes adherence to the EU RoHS directive, EU REACH regulations, and halogen-free standards (Bromine <900 ppm, Chlorine <900 ppm, Br+Cl < 1500 ppm). The product itself is maintained within RoHS compliant specifications.

3. Absolute Maximum Ratings

These ratings define the limits beyond which permanent damage to the device may occur. Operation under or at these conditions is not guaranteed.

• Reverse Voltage (V_R): 5 V
• Forward Current (I_F): 20 mA (Continuous)
• Peak Forward Current (I_FP): 60 mA (Duty Cycle 1/10 @ 1kHz)
• Power Dissipation (P_d): 60 mW
• Operating Temperature (T_opr): -40°C to +85°C
• Storage Temperature (T_stg): -40°C to +90°C
• Electrostatic Discharge (ESD): 2000 V (Human Body Model)
• Soldering Temperature (T_sol): Reflow: 260°C for 10 sec max; Hand: 350°C for 3 sec max.

4. Electro-Optical Characteristics

All parameters are specified at an ambient temperature (T_a) of 25°C and a forward current (I_F) of 20mA, unless otherwise noted.

4.1 Luminous Intensity and Binning

The luminous intensity (I_v) is categorized into ranks (A2 through A7), providing a range of brightness options for design flexibility.

• Rank A2: Typical 496 mcd (Min. 198 mcd)
• Rank A3: Typical 714 mcd (Min. 463 mcd)
• Rank A4: Typical 892 mcd (Min. 661 mcd)
• Rank A5: Typical 1156 mcd (Min. 793 mcd)
• Rank A6: Typical 1454 mcd (Min. 991 mcd)
• Rank A7: Typical 1600 mcd (Min. 1150 mcd)

4.2 Spectral and Electrical Parameters

• Viewing Angle (2θ_1/2): 25° (Typical)
• Peak Wavelength (λ_p): 591 nm (Typical)
• Dominant Wavelength (λ_d): 589 nm (Typical)
• Spectral Bandwidth (Δλ): 15 nm (Typical)
• Forward Voltage (V_F): 2.4 V (Typical), 2.0 V (Min.) at I_F=20mA
• Reverse Current (I_R): 10 μA (Max.) at V_R=5V

Note: The 5V reverse voltage rating is applicable for I_R testing only. The device is not designed for operation under reverse bias.

5. Package Outline and Mechanical Dimensions

The LED comes in a standard SMD package. The key dimensions are provided in detailed drawings (referenced as TR7, TR9, TR10 in the datasheet). Unless specified otherwise, the dimensional tolerance is ±0.1 mm.

5.1 Key Package Dimensions (Typical)

• Package Length: 2.0 mm
• Package Width: 1.25 mm
• Package Height: 0.8 mm
• Land Pattern: Design guidelines are provided to ensure proper soldering and thermal management.

5.2 Polarity Identification

The cathode is typically marked on the package. Consult the detailed dimension drawing for the exact marking scheme.

6. Label Explanation and Ordering Information

The product labeling includes several codes for traceability and specification:

• CPN: Customer's Product Number
• P/N: Product Number (e.g., 95-21UYC/S530-XX/XXX)
• LOT No: Manufacturing Lot Number
• QTY: Packing Quantity
• CAT: Luminous Intensity Rank (A2-A7)
• HUE: Dominant Wavelength Rank
• REF: Forward Voltage Rank

7. Packaging Specifications

The components are supplied on embossed carrier tape for automated handling.

• Carrier Tape Width: 12 mm
• Reel Diameter: 7 inches
• Pocket Pitch: 4.0 mm
• Quantity per Reel: Standard quantity as per EIA specification.
• Bulk Packing: Also available in bags of 1000 pieces.

8. Handling, Storage, and Soldering Guidelines

8.1 Over-Current Protection

An external current-limiting resistor is mandatory. The LED's V-I characteristic is exponential, meaning a small increase in voltage can cause a large, damaging increase in current.

8.2 Moisture Sensitivity and Storage

This component is moisture-sensitive (MSL).

• Before opening: Store at ≤30°C and ≤90% RH.
• After opening: The floor life is 72 hours at ≤30°C and ≤60% RH.
• Rebaking: If the moisture barrier bag is compromised or storage time is exceeded, bake at 60±5°C for 24 hours before use.

8.3 Reflow Soldering Profile (Pb-free)

A recommended temperature profile is provided:

• Pre-heating: 150-200°C for 60-120 seconds (max ramp 3°C/sec).
• Time above liquidus (217°C): 60-150 seconds.
• Peak Temperature: 260°C maximum, held for no more than 10 seconds.
• Time above 255°C: Maximum 30 seconds.
• Cooling Rate: Maximum 6°C/sec.

Critical Notes: Do not exceed two reflow cycles. Avoid mechanical stress on the LED during heating. Do not warp the PCB after soldering.

8.4 Hand Soldering and Rework

If hand soldering is unavoidable:

• Use a soldering iron with a tip temperature <350°C.
• Limit contact time to 3 seconds per terminal.
• Use a low-power iron (<25W).
• Allow a 2-second minimum interval between soldering terminals.
• Avoid rework. If absolutely necessary, use a dual-head soldering iron to simultaneously heat both terminals and minimize thermal stress. Verify device functionality after rework.

9. Application Areas

This LED is suitable for a wide range of low-power indicator and backlighting functions, particularly where space and weight are constraints.

• Status indicators in consumer electronics (indoor use).
• Backlighting for LCD panels, membrane switches, and symbols.
• Indicator and panel lighting in office equipment (printers, copiers).
• Battery-powered device indicators (remote controls, portable instruments).
• Audio/Video equipment status lights.
• Dashboard and switch backlighting in automotive interiors.
• Indicator and keypad backlighting in telecommunication devices (phones, fax machines).

10. Design Considerations and Technical Analysis

10.1 Driving Circuit Design

Given a typical forward voltage of 2.4V, a series resistor is essential. The resistor value (R_s) can be calculated using Ohm's Law: R_s = (V_supply - V_F) / I_F. For a 5V supply and a target I_F of 20mA, R_s ≈ (5 - 2.4) / 0.02 = 130 Ω. A standard 130Ω or 150Ω resistor with adequate power rating (P = I_F² * R_s) should be used.

10.2 Thermal Management

While the power dissipation is low (60mW max), proper PCB layout is crucial for long-term reliability. Ensure the solder pads connect to sufficient copper area to act as a heat sink, especially if operating near the maximum current or at elevated ambient temperatures.

10.3 Optical Performance

The 25° viewing angle provides a relatively focused beam, making it suitable for directed indicator applications. The Super Yellow color (λ_d ~589nm) offers high visual contrast and is often used for caution or attention indicators.

10.4 Comparison with Alternative Technologies

Compared to older through-hole yellow LEDs, this SMD version offers a drastic reduction in size and weight, enabling modern, miniaturized designs. The AlGaInP material system provides high efficiency and good color purity for yellow emission. Compared to some white LEDs used for backlighting, it offers a saturated color without the need for phosphors, potentially simplifying the optical design for specific color requirements.

11. Frequently Asked Questions (FAQ)

11.1 Can I drive this LED without a resistor?

No. Operating without a current-limiting resistor will almost certainly destroy the LED due to overcurrent, even with a small voltage source like a 3V coin cell.

11.2 What is the difference between Peak and Dominant Wavelength?

Peak Wavelength (λ_p): The wavelength at which the spectral power distribution is maximum (591 nm typical). Dominant Wavelength (λ_d): The single wavelength perceived by the human eye that matches the color of the light (589 nm typical). For monochromatic LEDs like this one, they are very close.

11.3 How do I select the correct brightness rank (CAT)?

Choose based on your application's required luminous intensity. Rank A2 is the dimmest, and A7 is the brightest. Consider ambient light conditions and viewing distance. For high-ambient-light situations, a higher rank (A5-A7) may be necessary.

11.4 Is this LED suitable for outdoor use?

The datasheet specifies applications as "indoor." The operating temperature range (-40°C to +85°C) is wide, but outdoor use would require additional design validation for factors like UV exposure, humidity sealing, and thermal cycling, which are not covered in this document.

12. Practical Application Example

Scenario: Designing a low-battery indicator for a handheld medical device.

• Component Selection: The 95-21UYC in Rank A5 is chosen for its bright, attention-grabbing yellow light.
• Circuit Design: The device is powered by a 3.3V regulator. A 47Ω series resistor is calculated: (3.3V - 2.4V) / 0.02A = 45Ω. The nearest standard value of 47Ω results in a forward current of approximately 19.1mA, which is safe and provides sufficient brightness.
• PCB Layout: The LED is placed near the device's display. The PCB pads are connected to a small copper pour on the top layer to aid heat dissipation.
• Assembly: The LEDs are placed using a pick-and-place machine from the 12mm tape reel and soldered using the specified Pb-free reflow profile.
• Result: A reliable, compact, and clearly visible low-battery warning indicator.

13. Operating Principle

This is a semiconductor light-emitting diode. When a forward bias voltage exceeding its characteristic forward voltage (V_F) is applied, electrons and holes recombine in the active region of the AlGaInP semiconductor chip. This recombination process releases energy in the form of photons (light). The specific composition of the AlGaInP alloy determines the bandgap energy, which directly defines the wavelength (color) of the emitted light—in this case, yellow (~589 nm). The water-clear resin package acts as a lens, shaping the light output into the specified 25° viewing angle.
