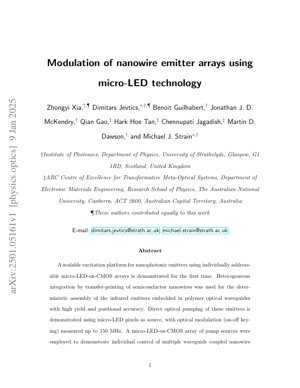

Modulation of Nanowire Emitter Arrays using Micro-LED Technology

Table of Contents

1. Introduction & Overview

This work presents a groundbreaking scalable platform for exciting nanophotonic emitters, specifically semiconductor nanowires, using individually addressable micro-LED-on-CMOS arrays. The research tackles two fundamental bottlenecks in moving from single-device demonstrations to practical on-chip systems: 1) the deterministic, high-yield integration of multiple nanoscale emitters, and 2) their parallel, high-speed electronic control. The team from the University of Strathclyde and the Australian National University demonstrates a synergistic approach combining micro-transfer-printing for nanowire assembly and advanced micro-LED arrays for optical pumping, achieving modulation speeds up to 150 MHz.

2. Core Technology & Methodology

2.1 Heterogeneous Integration via Transfer-Printing

The deterministic assembly of infrared-emitting semiconductor nanowires is achieved through heterogeneous integration techniques, primarily micro-transfer-printing. This process allows for the precise placement of pre-screened nanowires from their growth substrate onto a receiver substrate containing pre-patterned polymer optical waveguides. The method boasts high yield and positional accuracy, which is critical for building complex photonic circuits. This approach moves beyond traditional "pick-and-place" limitations, enabling the scalable integration of dissimilar materials (III-V nanowires on Si-based platforms), a concept central to modern photonics as highlighted in reviews on heterogeneous integration.

2.2 Micro-LED-on-CMOS Array as Pump Source

The excitation source is a key innovation. Instead of bulky, single-spot lasers or slow Spatial Light Modulators (SLMs), the team employs a micro-LED array fabricated directly on a CMOS backplane. This technology, advanced by the group itself, features a 128x128 pixel array capable of nanosecond pulsing, independent pixel control at up to 0.5 million frames per second, and grayscale control. Each micro-LED pixel acts as a localized optical pump for a corresponding nanowire emitter, enabling true electronic addressing and modulation.

3. Experimental Results & Performance

3.1 Optical Modulation & Speed

The direct optical pumping of waveguide-embedded nanowires by the micro-LED pixels was successfully demonstrated. The system achieved optical modulation using simple on-off keying (OOK) at rates up to 150 MHz. This speed is orders of magnitude faster than what is achievable with SLM-based pumping (~10 kHz) and is sufficient for many intra-chip optical communication and sensing applications. The modulation efficiency and coupling loss between the micro-LED pump and the nanowire emitter are critical parameters determined by the overlap of the pump light with the nanowire's active region and the waveguide design.

3.2 Parallel Control of Multiple Emitters

A significant result is the parallel, individual control of multiple waveguide-coupled nanowire emitters. By selectively activating different pixels on the micro-LED-on-CMOS array, specific nanowires in the array were excited independently. This proves the concept of a scalable addressing architecture, moving beyond single-device testing towards system-level functionality. The experiment paves the way for using such arrays to control larger numbers of emitters for complex photonic integrated circuits (PICs).

Figure Description

Schematic of the Integrated System: A diagram would show the CMOS chip with a 2D array of micro-LED pixels. Above it, a polymer waveguide layer contains an array of semiconductor nanowires, each aligned and positioned to be optically pumped by a specific micro-LED pixel below. Arrows indicate independent electronic control signals from the CMOS driving individual LEDs, which in turn pump specific nanowires, emitting light into the waveguide.

4. Technical Analysis & Framework

4.1 Core Insight & Logical Flow

The paper's core insight is brutally simple yet powerful: decouple the scaling problem. Instead of trying to make nanowires electrically driven and integrated en masse—a materials and fabrication nightmare—they keep the nanowire as a pure, efficient optical emitter. The scaling and control headaches are offloaded to the micro-LED-on-CMOS array, a technology benefiting from decades of CMOS scaling and display industry manufacturing. The logical flow is: 1) Use scalable printing for physical integration of emitters, 2) Use a scalable CMOS array for electronic control and addressing, 3) Bridge the two with light. This is a masterclass in system-level thinking, reminiscent of the philosophy behind Google's TPU architecture—using a simpler, specialized control layer to manage complex, dense computational units.

4.2 Strengths & Critical Flaws

Strengths: The platform's elegance is its greatest strength. The micro-LED array is a ready-made, massively parallel optical addressing head. The 150 MHz modulation, while not breaking records for lasers, is more than adequate for many digital PIC applications and is achieved with a compact, electronic driver. The heterogeneous integration path is pragmatic, leveraging pre-existing techniques for yield.

Critical Flaws: Let's not sugarcoat it. The elephant in the room is power efficiency and heat. Optical pumping is inherently less efficient than direct electrical injection. Converting electrical signals to light (in the micro-LED) to pump another light emitter (the nanowire) introduces significant Stokes shift losses and heat generation. For large-scale arrays, this thermal load could be prohibitive. Secondly, the alignment and coupling between the LED pixel and the nanowire, though "deterministic," remains a precision packaging challenge that must be solved for high-volume manufacturing. This isn't a monolithic integration story; it's a hybrid assembly one, with all the attendant reliability questions.

4.3 Actionable Insights & Strategic Implications

For researchers and companies in quantum photonics, LiDAR, or optical computing, this work is a blueprint to steal. The immediate actionable insight is to adopt this decoupled architecture for prototyping complex emitter arrays. Don't waste cycles trying to make every nanowire electrically addressable from the start. Use a commercial or custom micro-display as your optical "FPGA" to test concepts in parallel control and system functionality.

The strategic implication is that the value is shifting from the emitter material itself to the control interface. The company that masters high-density, high-speed micro-LED-on-CMOS arrays for non-display applications (like this one) could become the "Intel inside" for next-gen photonic systems. Furthermore, this work subtly argues for a future where photonic and electronic chips are not forced into a painful monolithic marriage but are allowed to be separate, optimized "chiplets" connected by efficient optical interfaces—a vision aligned with the DARPA-led CHIPS (Common Heterogeneous Integration and IP Reuse Strategies) initiative.

5. Future Applications & Directions

The demonstrated platform opens several compelling future directions:

• Large-Scale Quantum Photonic Circuits: Individually addressable single-photon sources are crucial for photonic quantum computing. This platform could be used to control arrays of nanowire-based quantum dot emitters for generating entangled photon states or for feeding programmable photonic circuits.
• High-Resolution LiDAR and 3D Sensing: A densely packed array of independently modulated light sources could enable solid-state, flash LiDAR systems with no moving parts, offering faster frame rates and improved reliability for autonomous vehicles and robotics.
• Neuromorphic Photonics: The ability to independently control an array of optical emitters with nanosecond timing could be used to implement photonic neural networks, where each emitter represents a neuron and the optical connections represent synapses.
• On-Chip Optical Interconnects: As a dense array of modulated light sources, this technology could provide the transmitters for wavelength-division-multiplexed (WDM) optical communication within data centers or high-performance computing systems.
• Next Steps: Future work must focus on improving the overall wall-plug efficiency, potentially by exploring resonant pumping schemes or developing nanowires with lower pump thresholds. Scaling the transfer-printing process to thousands of devices with near-perfect yield is another critical engineering challenge. Finally, integrating wavelength-selective elements (like filters or gratings) would enable wavelength multiplexing on a single chip.

6. References

1. Bowers, J. E., et al. "Heterogeneous Integration for Photonics." Nature, 2022. (Review on integration techniques)
2. Jahns, J., & Huang, A. "Planar integration of free-space optical components." Applied Optics, 1989. (Early work on micro-optics integration)
3. DARPA. "CHIPS (Common Heterogeneous Integration and IP Reuse Strategies) Initiative." https://www.darpa.mil/program/chips (Relevant program for chiplet-based design)
4. McKendry, J. J. D., et al. "High-Speed Visible Light Communications Using Individual CMOS-Controlled Micro-LEDs." IEEE Photonics Technology Letters, 2020. (Background on the micro-LED technology used)
5. Eggleton, B. J., et al. "Chalcogenide photonics." Nature Photonics, 2011. (Example of advanced photonic materials)
6. Zhu, J., et al. "On-chip single nanoparticle detection and sizing by mode splitting in an ultrahigh-Q microresonator." Nature Photonics, 2010. (Example of nanophotonic sensing)
