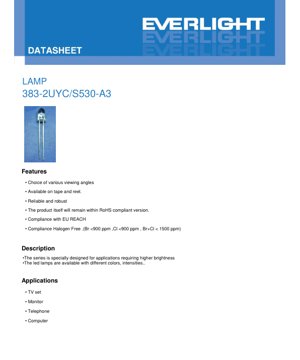

Takardar Bayani na Fitilar LED 383-2UYC/S530-A3 - Rairayin Yellow - 20mA - 2.0V Na Yau Da Kullun - Takardar Fasaha

1. Bayyani Game da Samfur

Wannan takarda ta yi cikakken bayani game da ƙayyadaddun bayanai na fitilar LED mai haske mai ƙarfi da aka ƙera don aikace-aikacen da ke buƙatar fitar da haske mai inganci. Na'urar tana amfani da fasahar guntu ta AlGaInP don samar da hasken yellow mai rairawayi. An ƙera ta don dogaro da ƙarfi, wanda ya sa ta dace da aikace-aikace daban-daban na nuni da nuna alama na lantarki.

1.1 Fa'idodi na Asali da Kasuwar da Ake Nufi

Babbar fa'idar wannan jerin LED ita ce ƙarfin haskenta mai girma, tare da ƙimar yau da kullun ta kai 4263 mcd a daidaitaccen kwararar gaba na 20mA. Wannan ya sa ta dace sosai don aikace-aikacen da gani da haske suke da muhimmanci. Samfurin ya bi ka'idojin muhalli masu mahimmanci ciki har da RoHS, EU REACH, kuma ana yin shi ba tare da halogen ba. Ana samunsa a cikin marufi na tef da reel don tsarin haɗawa ta atomatik, yana tallafawa masana'antu masu yawa. Kasuwannin da ake nufi sun haɗa da na'urorin lantarki na masu amfani da na'urorin kwamfuta.

2. Zurfin Bincike na Ma'auni na Fasaha

Wannan sashe yana ba da cikakken bincike na gaskiya game da mahimman ma'auni na fasaha na LED kamar yadda aka ayyana a cikin Teburan Matsakaicin Matsakaici da Halayen Lantarki-Haske.

2.1 Matsakaicin Matsakaici

An ƙididdige na'urar don ci gaba da kwararar gaba (I_F) na 25 mA, tare da kololuwar kwararar gaba (I_FP) na 60 mA da aka halatta a ƙarƙashin yanayin bugun jini (ayyukan aiki 1/10 @ 1kHz). Matsakaicin ƙarfin baya (V_R) shine 5V. Ƙimar ɓarnawar wutar lantarki (P_d) shine 60 mW. An ƙayyade kewayon zafin aiki daga -40°C zuwa +85°C, tare da faɗaɗa zafin ajiya (T_stg) daga -40°C zuwa +100°C. Matsayin zafin gishiri shine 260°C na dakika 5, wanda shine ma'auni don hanyoyin sake karkatar da maras gubar.

2.2 Halayen Lantarki-Haske

A ƙarƙashin daidaitattun yanayin gwaji (T_a=25°C, I_F=20mA), na'urar tana nuna ƙarfin haske (I_v) tare da mafi ƙarancin 2713 mcd da ƙimar yau da kullun na 4263 mcd. Kusurwar kallo (2θ_1/2) kunkuntar digiri 6 ce, na yau da kullun don ƙarfin haske mai mai da hankali. Tsawon tsayin tsayi (λ_p) shine 591 nm, kuma babban tsayin tsayi (λ_d) shine 589 nm, yana tabbatar da fitarwa a cikin bakan yellow mai rairawayi. Faɗin bakan hasken (Δλ) shine 15 nm. Ƙarfin gaba (V_F) ya bambanta daga 1.7V zuwa 2.4V, tare da ƙimar yau da kullun na 2.0V. Kwararar baya (I_R) shine matsakaicin 10 μA a V_R=5V.

2.3 Halayen Zafi

Duk da cewa ba a bayyana shi a cikin wani tebur na daba ba, sarrafa zafi yana da mahimmanci. Ƙimar ɓarnawar wutar lantarki na 60 mW da kewayon zafin aiki suna ayyana iyakokin zafi. Daidaitaccen zafin zafi ko rage ƙimar kwarara a manyan yanayin zafi yana da mahimmanci don dogon lokacin dogaro, kamar yadda aka nuna a cikin bayanan aikace-aikace.

3. Bayanin Tsarin Rarraba

Takardar bayani tana nuni ga tsarin rarraba don mahimman ma'auni, wanda aka nuna ta lambobi akan lakabin marufi (CAT, HUE, REF). Wannan tsarin yana ba masana'antu damar zaɓar LED tare da halaye masu sarrafawa don daidaitaccen aiki a aikace-aikacensu.

• CAT (Matsayi na Ƙarfin Hasken):Yana haɗa LED bisa ga ƙimar hasken da aka auna (misali, mafi ƙarancin 2713 mcd yana iya ayyana rukuni ɗaya).
• HUE (Matsayi na Babban Tsayin Tsayi):Yana rarraba LED bisa ga babban tsayin tsayinsu (λ_d), yana tabbatar da daidaiton launi.
• REF (Matsayi na Ƙarfin Gaba):Yana rarraba LED ta hanyar ƙarfinsu na gaba (V_F) faɗuwa, wanda ke da mahimmanci don ƙirar kewayawa da la'akari da wutar lantarki.

4. Bincike na Lanƙwasa Aiki

Lanƙwasa halayen lantarki-haske na yau da kullun suna ba da hangen nesa na gani game da halayen na'urar a ƙarƙashin yanayi daban-daban.

4.1 Ƙarfin Dangantaka da Tsayin Tsayi

Wannan lanƙwasa yana nuna rarraba ƙarfin bakan, tare da kololuwa a kusan 591 nm (yellow) da ƙayyadaddun faɗin bakan, yana tabbatar da yanayin fitar da haske mai launi ɗaya.

4.2 Tsarin Jagora

Zanen jagora yana nuna kunkuntar kusurwar kallo na digiri 6, yana nuna yadda ƙarfin haske ke raguwa sosai a wajen tsakiyar hasken.

4.3 Kwararar Gaba da Ƙarfin Gaba (Lanƙwasa I-V)

Wannan lanƙwasa na asali yana nuna alaƙar ƙima tsakanin kwarara da ƙarfin lantarki don diode. Na yau da kullun V_Fna 2.0V a 20mA shine ma'auni mai mahimmanci don ƙirar kewayawa.

4.4 Ƙarfin Dangantaka da Kwararar Gaba

Wannan lanƙwasa yana nuna cewa fitar da haske (ƙarfin dangantaka) yana ƙaruwa tare da kwararar gaba. Duk da haka, aiki fiye da matsakaicin matsakaici zai rage tsawon rayuwa da dogaro.

4.5 Ƙarfin Dangantaka da Yanayin Yanayi & Kwararar Gaba da Yanayin Yanayi

Waɗannan lanƙwasa suna da mahimmanci don ƙirar zafi. Suna nuna cewa fitar da haske yana raguwa yayin da yanayin yanayi ke ƙaruwa. Akasin haka, don ƙayyadadden ƙarfin lantarki, kwararar gaba kuma tana raguwa tare da hawan zafi saboda canje-canjen halayen semiconductor. Wannan yana nuna buƙatar sarrafa zafi da yuwuwar rage ƙimar kwarara a cikin yanayi mai zafi.

5. Bayanin Injiniya da Marufi

5.1 Girman Marufi

LED yana cikin daidaitaccen marufin salon fitila. Zanen girma yana ba da ma'auni masu mahimmanci don ƙirar ƙafar PCB da haɗin injiniya. Muhimman bayanan sun ƙayyade cewa duk ma'auni suna cikin milimita, tsayin flange dole ne ya zama ƙasa da 1.5mm, kuma daidaitaccen jurewa shine ±0.25mm sai dai idan an faɗi. Dole ne masu ƙira su bi waɗannan ma'auni don tabbatar da daidaitaccen dacewa da gishiri.

5.2 Gano Polarity

Ana nuna polarity ta tsayin jagora (dogon jagora shine anode) ko lebur a kan flange na marufi. Dole ne a duba zanen girma na takardar bayani don takamaiman alamar da aka yi amfani da ita akan wannan ɓangaren.

6. Jagororin Gishiri da Haɗawa

Daidaitaccen sarrafawa yana da mahimmanci don hana lalacewa. Muhimman jagororin sun haɗa da:

• Samuwar Jagora:Dole ne a yi shi kafin gishiri, aƙalla 3mm daga kwararan fitila na epoxy. Guji damuwa akan marufi.
• Ajiya:Ajiye a ≤30°C da ≤70% RH. Don ajiyar dogon lokaci (>3 watanni), yi amfani da akwati mai rufewa da iskar nitrogen tare da busasshiyar abu.
• Gishiri:
  • Kiyaye mafi ƙarancin nisa na 3mm daga haɗin gishiri zuwa kwararan fitila na epoxy.
  • Gishiri da Hannu:Ƙarshen ƙarfe ≤300°C (30W matsakaici), lokaci ≤3 dakika.
  • Gishiri na Wave/DIP:Dumama ≤100°C (≤60 sec), wanka na gishiri ≤260°C na ≤5 dakika.
  • Guci zagayowar gishiri da yawa da damuwa na injiniya yayin/bayan gishiri har sai na'urar ta yi sanyi.
• Tsaftacewa:Yi amfani da barasa na isopropyl a zafin daki na ≤1 minti idan ya cancanta. Guji tsaftacewa ta ultrasonic sai dai idan an riga an cancanta.

7. Bayanin Marufi da Oda

7.1 Ƙayyadaddun Marufi

Ana tattara LED a cikin jakunkuna masu hana lantarki, ana sanya su a cikin akwatunan ciki, sannan a tattara su cikin akwatunan waje. Ƙimar tattarawa ta yau da kullun ita ce 200-500 guda a kowace jakar, jakuna 6 a kowace akwati na ciki, da akwatunan ciki 10 a kowace babban akwati (waje).

7.2 Bayanin Lakabi

Lakabin marufi ya haɗa da lambobi don bin diddigin da rarraba: CPN (Lambar Kayan Abokin Ciniki), P/N (Lambar Bangare), QTY (Yawa), CAT (Rukunin Ƙarfin Hasken), HUE (Rukunin Babban Tsayin Tsayi), REF (Rukunin Ƙarfin Gaba), da LOT No. (Lambar Rukuni).

8. Shawarwari na Aikace-aikace

8.1 Yanayin Aikace-aikace na Yau Da Kullun

Saboda ƙarfin haskensa da hasken da aka mai da hankali, wannan LED ya dace sosai don: Hasken baya don na'urorin TV da na'urorin kallo, alamomin matsayi a cikin wayoyi da kwamfutoci, alamomin panel, da sauran aikace-aikacen da ke buƙatar hasken yellow mai haske, mai gani.

8.2 La'akari da Ƙira

• Iyakance Kwarara:Koyaushe yi amfani da resistor na jerin ko direba mai daidaitaccen kwarara don iyakance I_Fzuwa ƙimar da ake so (misali, 20mA don haske na yau da kullun).
• Sarrafa Zafi:Yi la'akari da tsarin PCB don ɓarnawar zafi, musamman idan ana aiki kusa da matsakaicin ƙididdiga ko a cikin manyan yanayin zafi. Duba jagororin rage ƙima.
• Kariya daga ESD:Aiwatar da matakan kariya na ESD na yau da kullun yayin sarrafawa da haɗawa, saboda LED suna da hankali ga fitar da lantarki.
• Ƙirar Haske:Kunkuntar kusurwar kallo na iya buƙatar ruwan tabarau ko masu watsawa idan ana buƙatar faɗaɗan wurin haskakawa.

9. Kwatancen Fasaha da Bambance-bambance

Idan aka kwatanta da daidaitattun LED na nuna alama, babban abin da ya bambanta wannan na'urar shine ƙarfin haskenta mai girma sosai (4263 mcd na yau da kullun) daga daidaitaccen marufin fitila. Amfani da fasahar AlGaInP yana ba da inganci mai girma a cikin bakan yellow/orange/ja. Biyansa da ka'idojin muhalli na zamani (RoHS, REACH, Maras Halogen) shine tsammanin tushe amma har yanzu yana da mahimmanci ga kasuwanni masu ƙa'ida. Kunkuntar kusurwar kallo yana ba da ƙarfin axial mai girma, wanda ke da fa'ida don aikace-aikacen hasken da aka jagoranta amma iyaka ne inda ake buƙatar fitarwa mai faɗi.

10. Tambayoyin da ake yawan yi (Bisa ga Ma'auni na Fasaha)

Q: Zan iya tuka wannan LED a 30mA don ƙarin haske?

A: Matsakaicin Matsakaici don ci gaba da kwararar gaba shine 25 mA. Aiki a 30mA ya wuce wannan ƙimar, wanda zai rage dogaro da tsawon rayuwa sosai, kuma yana iya haifar da gazawa nan take. Koyaushe yi aiki a cikin iyakokin da aka ƙayyade.

Q: Wane ƙimar resistor ne ya kamata in yi amfani da shi don wadataccen wutar lantarki na 5V?

A: Amfani da Dokar Ohm: R = (V_wadata- V_F) / I_F. Tare da V_wadata=5V, V_F=2.0V (na yau da kullun), da I_F=20mA (0.02A), R = (5 - 2.0) / 0.02 = 150 Ω. Zaɓi daidaitaccen ƙimar resistor kusa da wannan (misali, 150Ω ko 160Ω) kuma tabbatar da cewa ƙimar wutar lantarki ta isa (P = I²R = 0.06W, don haka resistor na 1/8W ko 1/4W yana da kyau).

Q: Me yasa fitar da haske ke raguwa lokacin da LED ya yi zafi?

A: Wannan shine halayen asali na LED na semiconductor. Yayin da zafin jiki ke ƙaruwa, ingancin quantum na ciki yana raguwa, kuma haɗuwar da ba ta da haske tana ƙaruwa, yana haifar da ƙarancin fitar da haske don irin wannan kwararar tuƙi. An nuna wannan a cikin lanƙwasa "Ƙarfin Dangantaka da Yanayin Yanayi."

11. Harka na Aikace-aikace na Aiki

Yanayi: Ƙirar alamar matsayi mai gani don kayan aikin masana'antu.Injiniya yana buƙatar LED yellow wanda za a iya gani a sarari a cikin yanayin masana'antu mai haske. Sun zaɓi wannan LED don ƙarfin sa mai girma (4263 mcd). Sun ƙera PCB tare da ƙafar da ta dace da girman marufi. Suna amfani da direba mai daidaitaccen kwarara da aka saita zuwa 20mA don tabbatar da daidaitaccen haske da tsawon rayuwa. Suna ɗora LED a bayan ƙaramin taga mai tsabta akan panel ɗin kayan aikin. Kunkuntar kusurwar kallo na digiri 6 ya dace da wannan aikace-aikacen alamar da aka jagoranta. Sun bi shawarar yanayin gishiri na wave yayin haɗawa kuma sun tabbatar da cewa an cika yanayin ajiya kafin amfani. Sakamakon shine ƙaƙƙarfan, abin dogaro, kuma alamar matsayi mai gani sosai.

12. Gabatarwa da Ka'idar Aiki

Wannan LED yana aiki bisa ka'idar electroluminescence a cikin diode na semiconductor. Kayan guntu shine AlGaInP (Aluminum Gallium Indium Phosphide), wanda shine semiconductor mai tsaka-tsaki kai tsaye. Lokacin da aka yi amfani da ƙarfin gaba, electrons daga yankin n-type da ramuka daga yankin p-type ana shigar da su cikin yankin aiki. Lokacin da waɗannan masu ɗaukar caji suka sake haɗuwa, suna sakin makamashi a cikin nau'in photons (haske). Takamaiman abun da ke cikin gami na AlGaInP yana ƙayyade ƙarfin bandgap, wanda kai tsaye yayi daidai da tsayin tsayi (launi) na hasken da aka fitar—a wannan yanayin, yellow mai rairawayi (~589-591 nm). Ruwan tabarau na epoxy yana aiki don kare mutuwar semiconductor, siffanta fitar da haske (sakamakon kusurwar kallo na digiri 6), da haɓaka fitar da haske daga guntu.

13. Trends na Fasaha

Masana'antar LED na ci gaba da haɓaka zuwa inganci mafi girma (lumens mafi yawa a kowace watt), ingantaccen nuna launi, da ƙarin dogaro. Duk da yake wannan na'urar tana amfani da ingantaccen fasahar AlGaInP, trends a cikin babban kasuwa sun haɗa da haɓaka mafi inganci na farin LED da aka canza da phosphor da micro-LEDs don aikace-aikacen nuni. Ga LED masu launi ɗaya kamar wannan, ci gaba da haɓaka yana mai da hankali kan tura iyakokin inganci, inganta aikin zafi mai girma, da ba da damar ƙarin ƙarfin rarraba don daidaiton launi da kwarara a cikin aikace-aikace masu wahala. Ƙarfafa biyayya ga muhalli (Maras Halogen, REACH) kuma wani ci gaba ne na ci gaba da dokokin duniya suka haifar.
